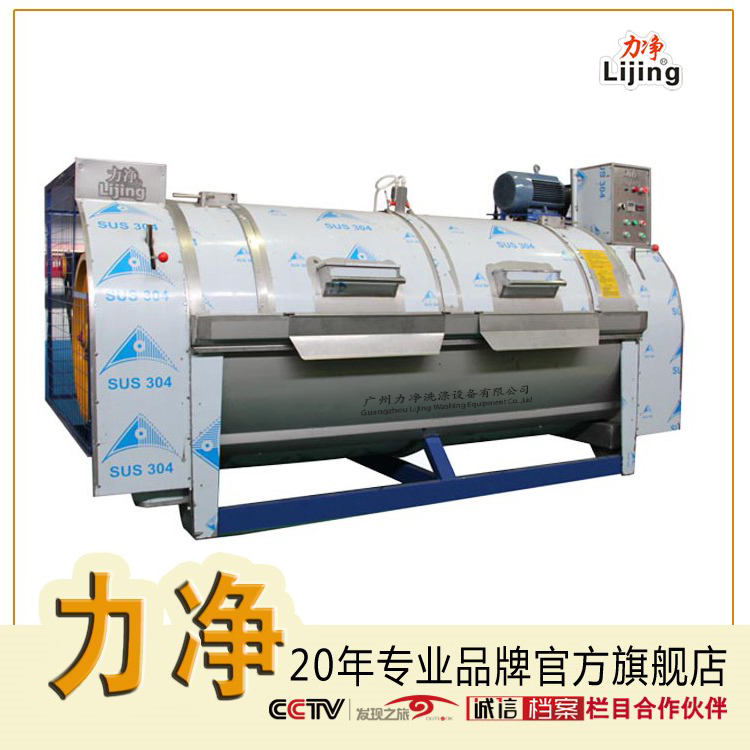

XGP-W series horizontal industrial washing machine is a new generation of washing machines for washing all kinds of cotton, wool, hemp, chemical fiber blended fabrics such as clothing, for mining, schools, hotels, hostels, hospitals and so has a wide range of uses , is to reduce labor intensity and improve work efficiency, reduce energy consumption ideal equipment.
The computers use the roller forward, stop, reverse, stop periodically reversing the fabric in the detergent and tumbling drum role played friction between the fabric and the fabric, fell throw in the drum, beat, under thump role, to remove dirt purposes.
Using a large-caliber fast into the drainage system, greatly reducing the wash cycle, the equipment to play a greater efficiency and cost savings; using copper sleeve seal, no leakage, the new oil asbestos packing shaft seal may never need to ensure replace the seal of the original while demolition spindle.
| 型號 Model | XGP-35W(B) | XGP-50W(B) | XGP-70W(B) | XGP-100W(B) | XGP-150W | XGP-200W | XGP-250W | XGP-300W |
|---|---|---|---|---|---|---|---|---|
|
洗滌容量(kg) Washing capacity |
35 | 50 | 70 | 100 | 150 | 200 | 250 | 300 |
|
電機功率(kw) motor power |
1.1 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 11 |
| 滾筒尺寸(mm) | Φ720×930 | Φ830×1000 | Φ970×1000 | Φ970×1400 | Φ1080.5×1620 | Φ1080.5×2000 | Φ1200×2200 | Φ1320×2200 |
|
外形尺寸(mm) Dimension |
1820×950×1150 | 1900×1050×1200 | 1900×1500×1400 | 2300×1500×1400 | 2560×1520×1720 | 2990×1560×2210 | 3200×1620×2500 | 3200×1750×2600 |
|
機器重量(kg) Weight |
1820 | 2200 | 3000 | 3500 | 1820 | 2200 | 3000 | 3500 |
|
 |
 |
 |
 |
|
|
|
| E-mail to us:
| |
 |

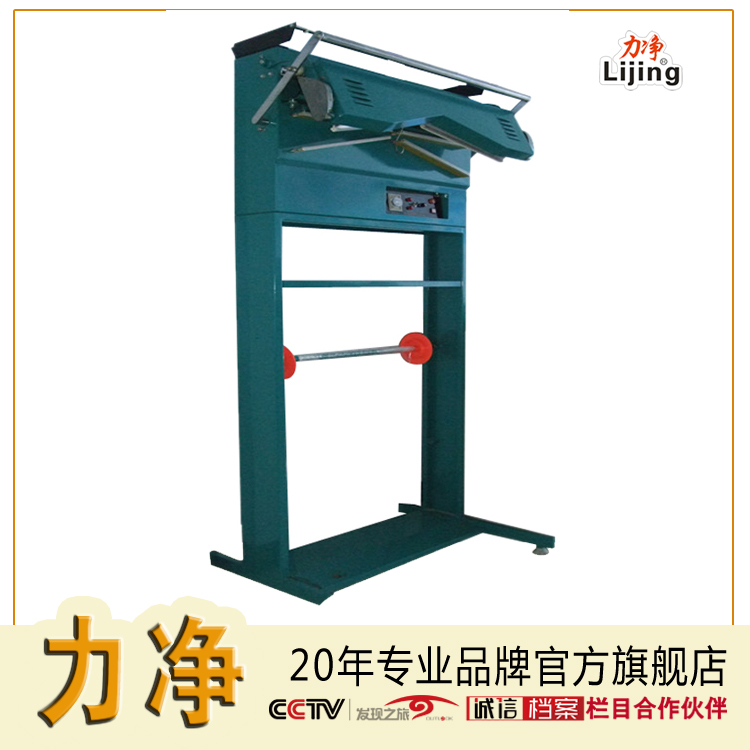

WJTB-125 semi automatic universal press ironer
